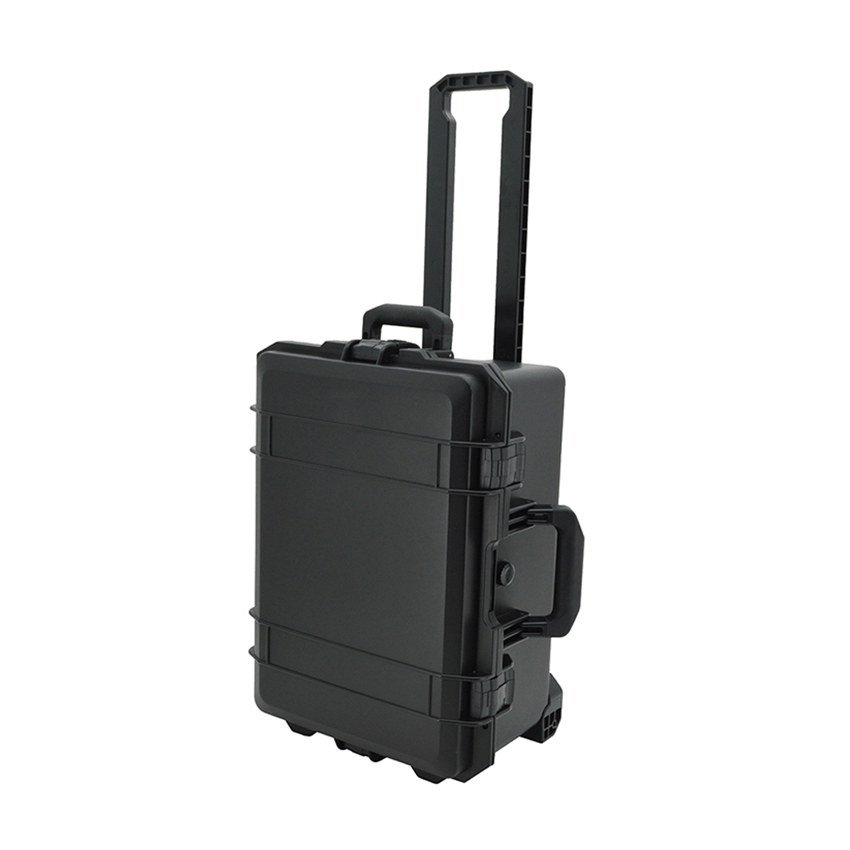

Protective Case with Wheel
Introduction
Item name: Protective Case with Wheel
Characteristic: Waterproof/Shockproof
Material: High strength ABS/PP
Color: Black
Dimension: Full size chart show as below
Custom service:
- Custom logo

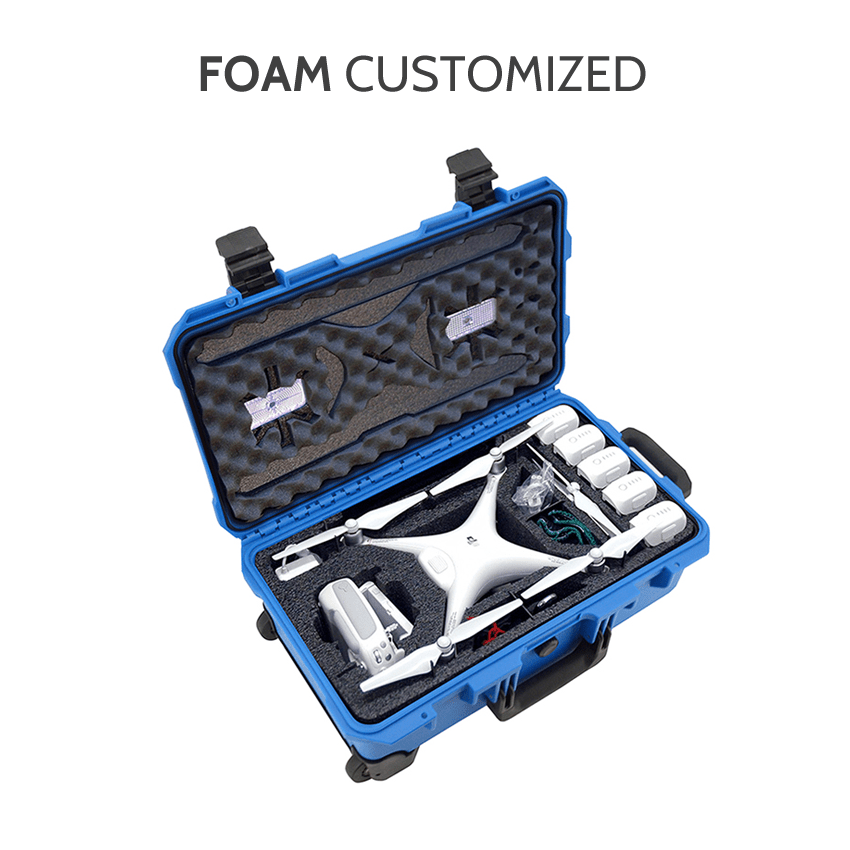

- Custom foam
- Custom lining

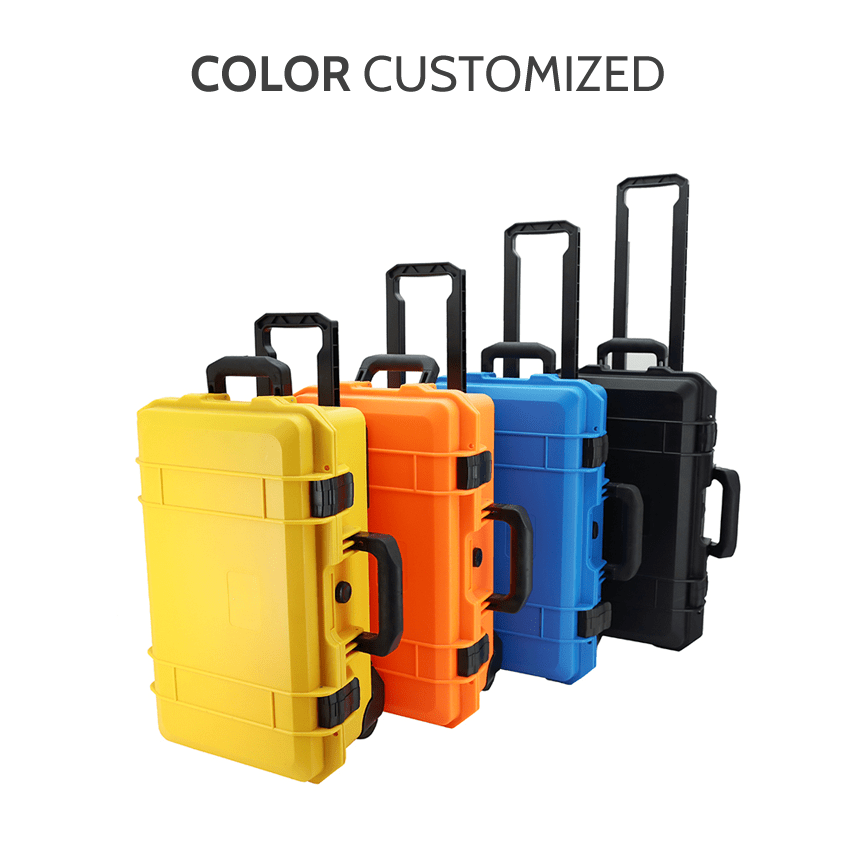

- Custom color
Description
1. The ABS/PP material is with good performance, high strength and light weight.
2. Operating temperature: -40 °C to +90 °C.
3. The case has the high quality sealing material, the protection grade can reach IP67.
4. The case is with advanced design of air valve to solve the problem of air pressure difference.

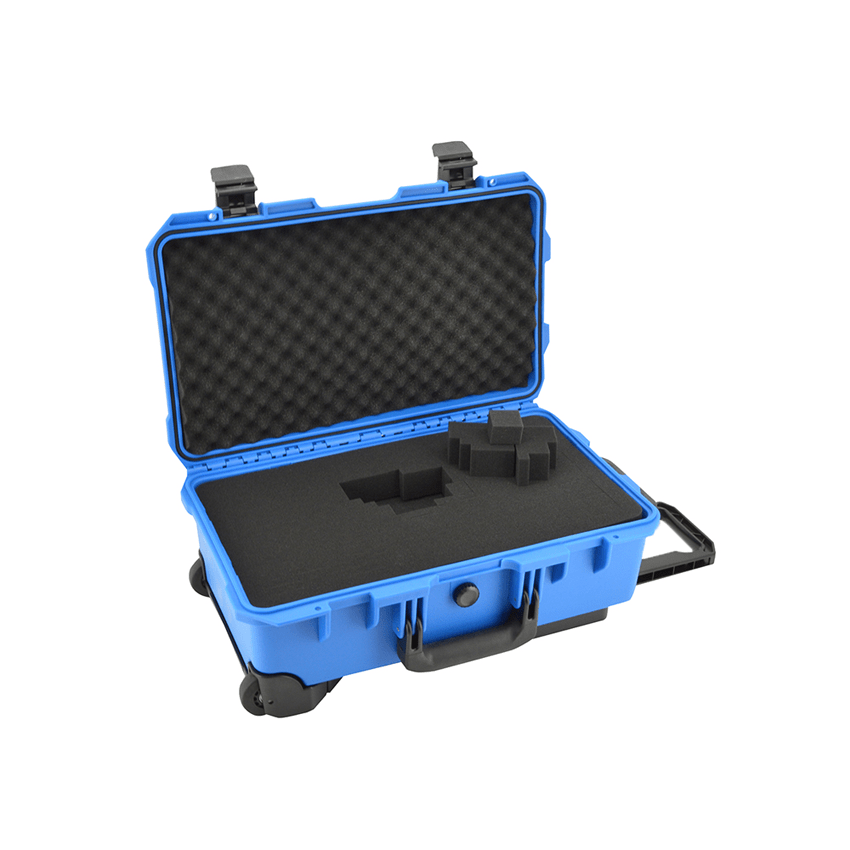

5. The case is with precut foam as standard, which can enhance protection and is easy to use.
6. The internal humanized detail design is convenient for the installation and use of instrument and equipment.
Size Chart
| Model | Inner Dimension(mm) | Outer Dimension(mm) | Lid/Base Depth(mm) | IP Rate |
|---|---|---|---|---|
| PC5129W | 515*290*185 | 560*350*227 | 45/140 | IP67 |
| PC5136W | 515*360*245 | 575*421*287 | 45/200 | IP67 |
| PC5136-1W | 515*360*345 | 575*421*387 | 45/300 | IP67 |
| PC5942W | 590*425*190 | 666*500*220 | 44/146 | IP67 |
| PC5942-1W | 597*427*272 | 668*495*329 | 62/210 | IP67 |
| PC6548W | 650*480*380 | 730*550*436 | 80/300 | IP67 |
| PC7255W | 720*550*397 | 795*618*453 | 80/317 | IP67 |
| PC7545W | 750*450*300 | 825*518*356 | 80/220 | IP67 |
| PC8866W | 886*668*238 | 960*731*264 | 50/188 | IP67 |
| PC110100W | 1100*1000*410 | 1156*1084*441 | 150/260 | IP67 |
| PC8734W | 878*340*130 | 942*400*144 | 40/90 | IP67 |
| PC10734W | 1078*340*130 | 1142*400*144 | 40/90 | IP67 |
| PC12734W | 1278*340*130 | 1342*400*144 | 40/90 | IP67 |
Feel free to drop us an e-mail
Please send us an e-mail to ask for the quotation or drawing of your interested items.
We’ll get back to you within 24 hours.
